Cheap foldable mobile home

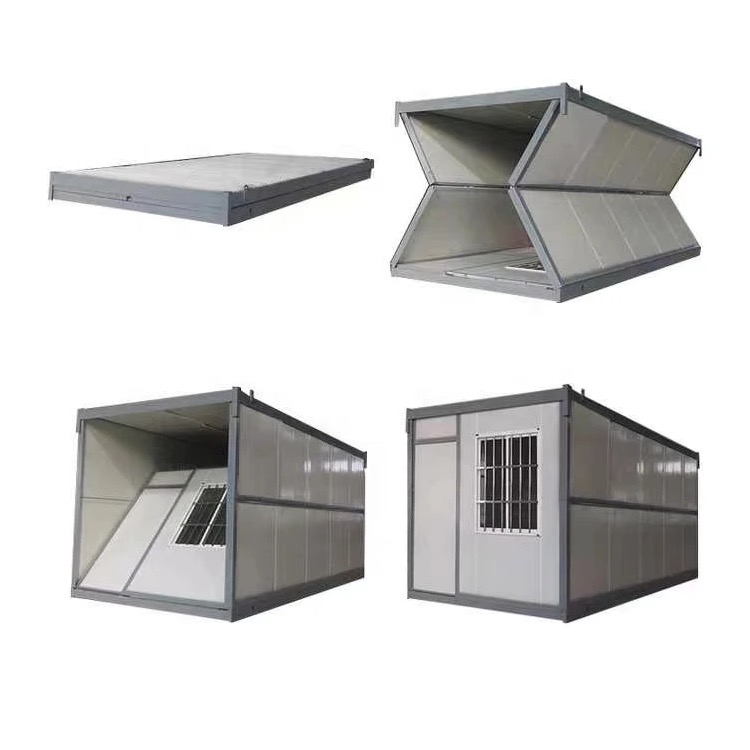

| Folding Container House | ||||
| Packing capacity | Qty | Unit | ||
| 40HQ/10sets | 10 | set | ||
| Dimension | ||||
| External dimension (mm) | 5800 L * 2500 W * 2560H | |||

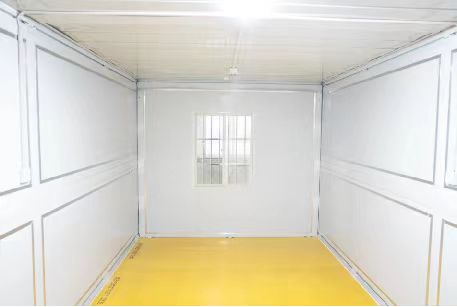

| Internal dimension (mm) | 5660 L * 2360 W * 2400H | |||

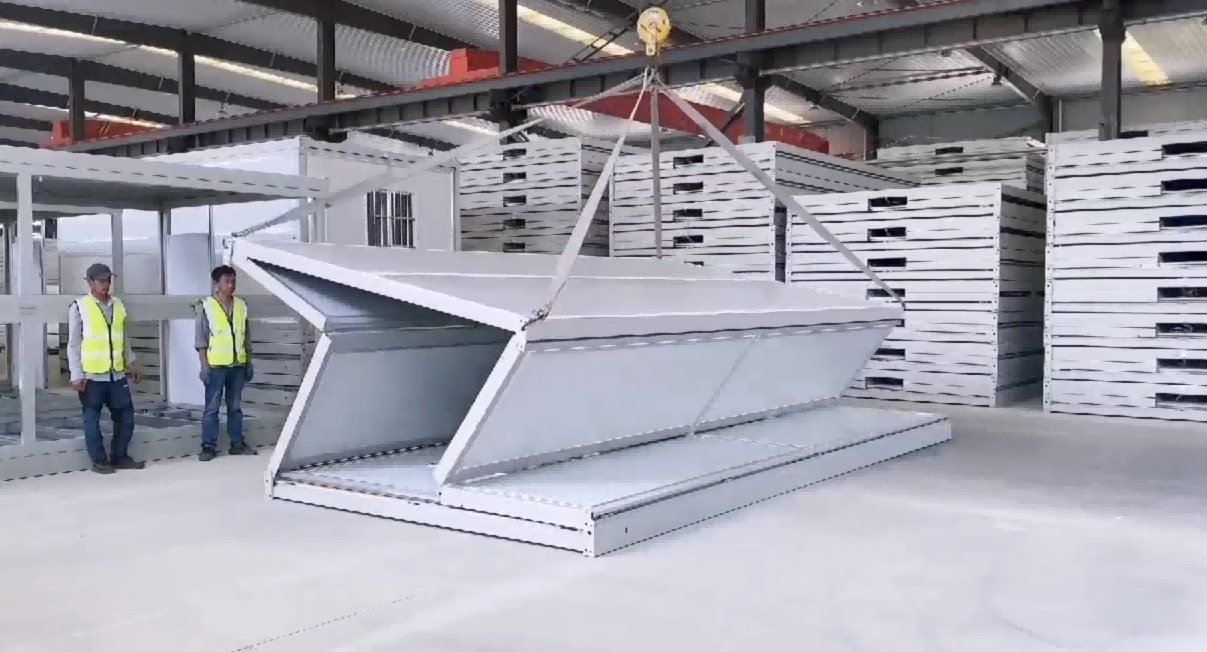

| Folding state (mm) | 5800 L * 2500 W * 430H | |||
| Total mass (kg) | 1300 | |||
| Standard Design Parameter | ||||
| No. | Item | value | ||
| 1 | Roof load | ≧0.5KN/m2 | ||
| 2 | Flooring Load | ≧2.0KN/m2 | ||
| 6 | Fire-proof level | A Level | ||
| 8 | Seismic grade | 8 Grade | ||
| 9 | Windproof level | 10 Level | ||
| Main material of Prefab House | ||||
| No. | Component | Materials | Thick(mm) | |
| Steel Structure | ||||
| 1 | Hanging head | 200*80mm，Cast steel connecting piece | 15 | |
| 2 | Column | 150*150mm, Special-shaped galvanized steel tube | 1.5 | |
| 3 | Bottom girder | H:270mm,Special-shaped galvanized steel | 2.5 | |
| 4 | Top girder | H:170mm,Special-shaped galvanized steel | 1.5 | |

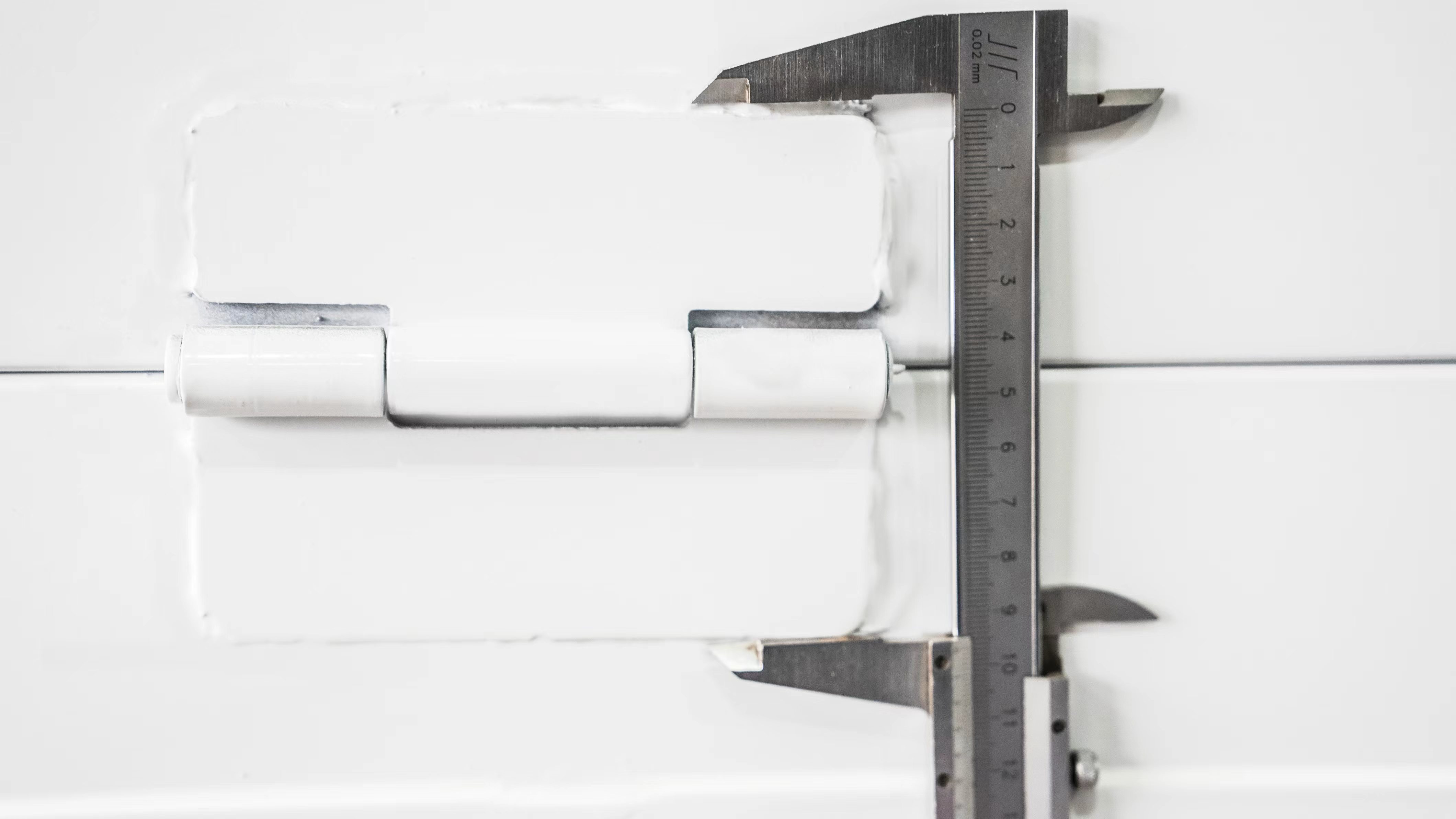

| 5 | Hinge | 85*115 mm，Galvanized 304 stainless steel | 5 | |
| Wall Panel & Roof Tile | ||||
| Roof | External roof | Corrugated steel plate | 0.5 | |
| Interior roof | Ceiling tile 0.35mm , glass wool 75mm |
|||
| Floor | Floor | MGO board,density≥1.3g/cm³ | 15.0 | |
| Wall | Interior wall panels | Galvanized color steel plate | 0.3 | |
| External wall panels | Galvanized color steel plate | 0.3 | ||
| Wall Panel | Fireproof rock wool board | 50.0 | ||
| Window & Door&Floor | ||||
| 1 | Door | High quality security door | 860*1998 | |
| 2 | Window | Aluminum alloy window | 950*1200×2 |
|
| Electrical system | ||||
| Voltage | 220V~250V | |||
| Wire | The total power cord for entry is 6.0 square meters, the air conditioning cable is 4.0 square meters, the socket cable is 2.5 square meters, and the lighting switch cable is 1.5 square meters | |||
| Circuit breaker | high score break miniature circuit breaker | |||
| Lighting | 1 set of single LED fluorescent lamps,36w | |||
| Sockets | socket, 3 pcs | |||
